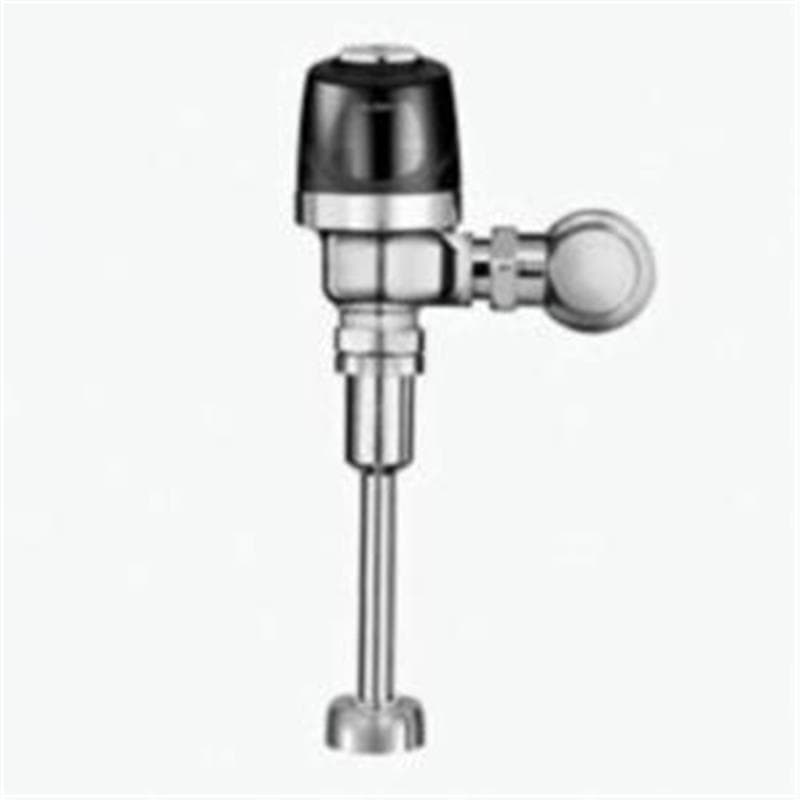

Sloan® 3790054 SLOAN 8180 Single Flush Sensor Exposed Flushometer, 1 gpf Flush

PERMEX® synthetic rubber diaphragm with dual filtered fixed by-pass Flex tube diaphragm designed for improved life and reduced maintenance Infrared sensor with multiple-focused lobular sensing fields for high and low target detection Latching solenoid operator Engineered metal cover with replaceable lens window User friendly three sec auto flush delay Infrared sensor range adjustment screw Initial set-up range indicator light 1 in IPS screwdriver Bak-Chek® angle stop Free spinning vandal-resistant stop cap Adjustable tailpiece High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut Spud coupling and flange for 1-1/2 in top spud Sweat solder adapter with cover tube and cast set screw wall flange High copper low zinc brass casting for dezincification resistance ensures long life Fixed metering by-pass and no external volume adjustment to ensure water conservation Flush accuracy controlled by CID® technology Diaphragm stop seat and vacuum breaker to be molded from PERMEX® rubber compound for chloramine resistance Top sensor position
